In today’s rapidly changing times, digital thinking has now come even in technical work like Ceiling Fan Coil Winding Data Digital Tool.

Ceiling fan winding is such a job where it is very important to have the correct data. One wrong winding coil data—and the fan can burn!

Earlier, technicians used to search for winding data on different books, Facebook, or YouTube – which was neither accurate nor time-saving.

But now the struggle for manual knowledge is over…

• Motor Coil Winding Data Tools for Electrician
• Wire Gauge Converter SWG to MM Best & No1 Conversion Tools
• A.C. Motor Winding (with winding data) updated 2020 edition

Now here is – Ceiling Fan Coil Winding Data Digital Tool

This tool is a smart search engine for your ceiling fan winding.

How does Ceiling Fan Coil Winding Data Digital Tool tool work?

The most special thing about our Digital Winding Tool is that —
You can find winding data not just by name but also through multiple filters.

visit our website
Open Ceiling Fan Coil Winding Data Digital Tool page
Use the following filters:

Just click on “Search”
Your complete winding data is ready!

You get the data by just filling one field – and if you want, you can also combine 2-3 filters.

Example: For Ceiling Fan Coil Winding Data Digital Tool

• If you only want data of fans with 18 slots, just enter 18 “Slots” → full list will appear.
• Or again find any fan of SWG 34, 35 – filter it SWG: 34, 35, or 36 and the results will come.

With this feature your time is saved and the chance of error also becomes zero.

Sample Search Result:

Ceiling Fan Coil Winding Data Digital Tool Search Result

Model: USHA OLD CEILING FAN
Slots: 18
Core Size: 33MM
Running Coil: SWG 36, Turns 370
Coil Pitch: 1-6, 1-8
Starting Coil: SWG 35, Turns 340
Total Weight: ~240 gm

This Digital data tool shows real-time Ceiling fan Coil Winding data.

Final Note

This Ceiling Fan Coil Winding Data Tool is not just a search form —
This is a complete technician assistant consisting of:

Detailed filters
Information from brand to wire

Every famous fan model available:
Usha, Crompton, Bajaj, Orient, GEC, Havells… Pular of top brands!

Brother, fan winding is not like before – it has become even easier!

• Coil winding technicians
• Electrician & rewinder
• Electrical institutes & coaching
• School / College
• Freelancers who do fan repairs

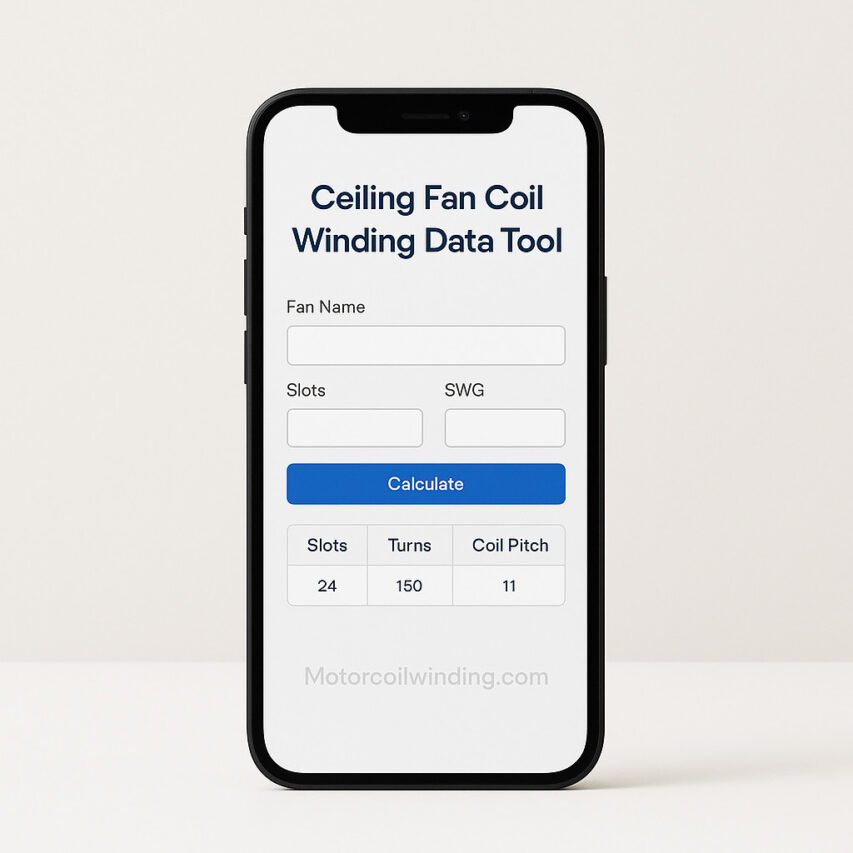

Use This Tool Below

Ceiling Fan Winding Data Tools

PAA (People also ask)

Q1. What is SWG in ceiling fan winding?
A1. What is the meaning of SWG?Standard Wire Gauge. This is the size of the copper wire used in the winding. For ceiling fan Coil mostly SWG 34, 35, or 36 is used, depending on coil turns and motor load.

Q2. How to calculate coil turns in fan winding?
A2. Coil turns are usually determined by the motor’s HP, RPM, and slots. You can use a digital winding tool to see the exact turns by model or slot number – such as 80, 90, 120 turns.

Q3. Can I do fan coil winding at home?
A3. Yes, but you need accurate data and some training. Our Ceiling Fan Winding Data Tool will help you determine the correct SWG, turns, and coil pitch.

Q4. Which wire is best for rewinding a fan?
A4. The best wire is enameled copper wire, which is heat-resistant. For ceiling fans, 34-36 SWG is generally the best. It is better to take branded copper to avoid overheating.

Q5. What is the meaning of coil pitch in fan winding?
A5. Coil pitch tells how many slots a coil has in its gap. Example:1-2, 1-4— This means the coil is installed from the 1st slot to the 2th, 4th, etc.

Q6. How to check capacitor value for fan winding?
A6. You can check the MFD value according to the fan model. Like:

• Usha fan = 2.25 MFD
• Crompton fan = 2.5 MFD
• Local fan = 2.5 MFD
  Capacitor values ​​are also available in the digital winding tool.

Q7. Is the digital fan winding tool free?
A7. Yes! Our Winding Data Tool is 100% free. You can extract data by search filter by model or SWG without login or payment.

Q8. What is the SWG to MM converter?
A8. SWG to MM converter is a tool that tells you the thickness of the wire in millimeters. Like:

• 35 SWG = 0.2134 mm
• 36 SWG = 0.193 mm

Q9. Does this tool work on mobile also?
A9. Absolutely. This tool is mobile responsive — you can search, scroll, and access fan winding data from the phone without downloading any app.

Q10. Which fan brands’ data is there in the tool?
A10. Data available for:

• Usha
• Crompton
• Bajaj
• Orient
• LATE
• Polar
• Havells
  … and many local models have also been added.

Conclusion (H2)

Ceiling fan winding is still an advanced repair skill today. But errors occur when the data is not correct.

That’s why we created this special tool – Ceiling Fan Coil Winding Data Digital Tool which will make the work of every small and big technician easy – without any hard work and tension.

Now just one search and the data will be in your hands… and you will get everything for free.

This is the time to make the world of technicians SMART and DIGITAL!
