Ceiling Fan Motor Coil Winding 50+ Data & Full Guide
Ceiling fan motor coil winding is a simple process, which is done by all electricians, even when it is used to repair burnt or old motors. In this process accurate coil winding data, correct SWG (Standard Wire Gauge), turns, slot alignment, pitch ratio, and insulation are used.
- In this article you will find:
- Updated coil winding data with SWG and turns
- Complete winding process for ceiling fan motors
- Free downloadable PDF for coil winding reference
- Real-world examples based on practical motor rewinding data

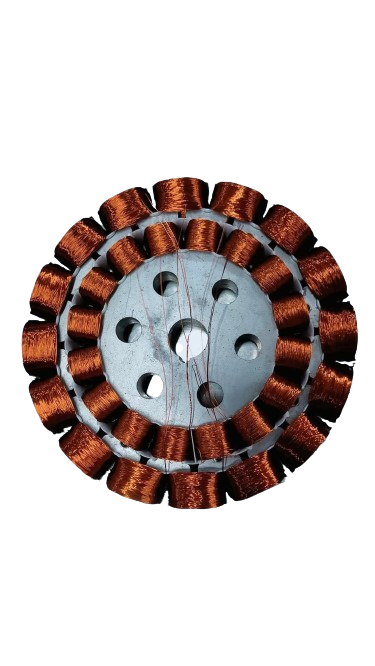

What is Ceiling Fan Coil Winding?
Coil winding is a process where insulated copper wire is inserted into the slots of the motor according to a specific pattern. Its goal is to create an effective magnetic field that rotates the fan blades.
Key Terms You Should Know
- Running Coil: Main winding part of the motor
- Starting Coil: Provides initial torque
- SWG (Standard Wire Gauge): Defines the thickness of the wire.
- Turns: Number of times wire is wrapped
- Pitch: Coil ka layout pattern (e.g., 1:2, 1:3)

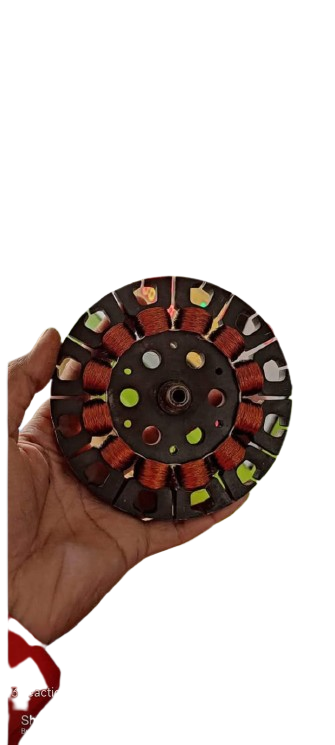

Ceiling Fan Coil Winding Data (Real Examples)
Ceiling fan motor winding data should be accurate, Otherwise the motor may overheat or will not start properly. Every fan brand has its own unique coil winding data, for which different winding data is required.

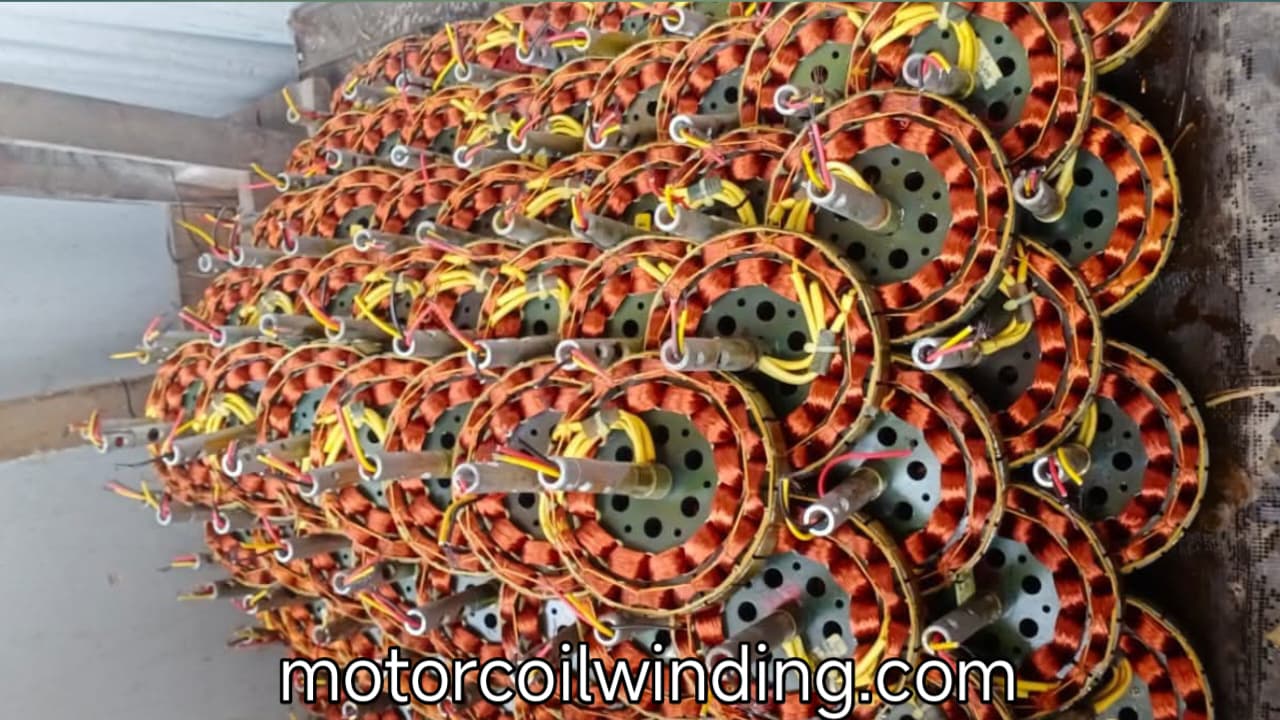

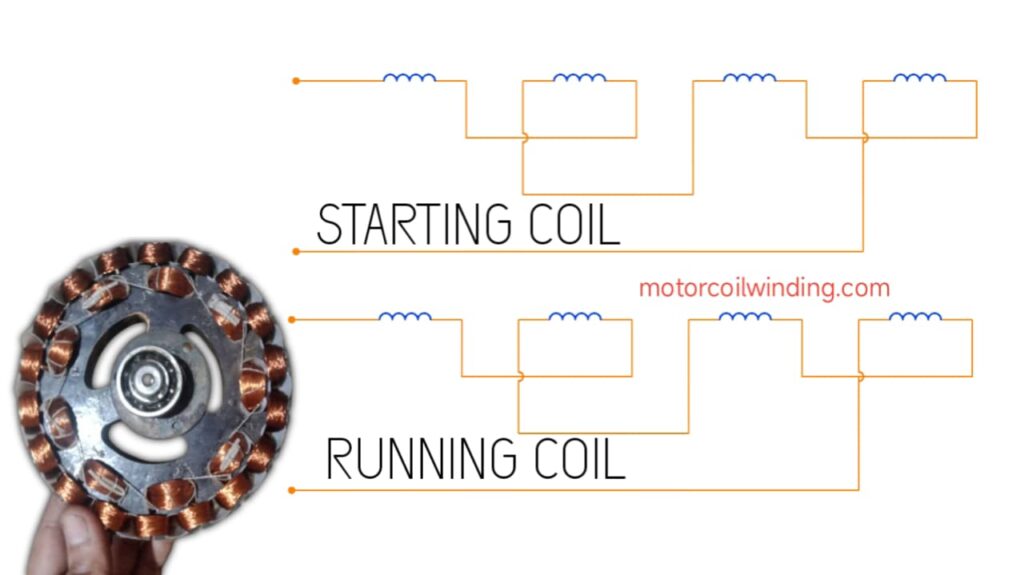

- Running Coil and Starting Coil Winding | Connection with Daigram
- What is Motor Coil Winding? Step-by-Step Guide & Process
In this article, you have been given detailed ceiling fan coil winding data for popular brands like Crompton, Orient, Bajaj, Usha, Khetan, Pollar, Cinni, Ralli, Padmin, Ashok, Shital, Shingar. PDF is also included:
USHA CEILING FAN 56”
Running Coil : 18
SWG : 34
Coil Turns : 420
Starting Coil : 18
SWG : 35
Coil Turns : 325
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
USHA CEILING FAN 56”
Running Coil : 18
SWG : 35
Coil Turns : 380
Starting Coil : 18
SWG : 34
Coil Turns : 260
Pitch : 1:2
Slot : 12
Core Length (mm) : 13
USHA PRIME CEILING FAN 48”
Running Coil : 16
SWG : 35
Coil Turns : 340
Starting Coil : 16
SWG : 36
Coil Turns : 330
Pitch : 1:2
Slot : 12
Core Length (mm) : 16
USHA PRIME CEILING FAN 48”
Ceiling fan windingdata 14+14= 28 coils pdf
Running Coil : 14
SWG : 35
Coil Turns : 370
Starting Coil : 14
SWG : 35
Coil Turns : 370
Pitch : 1:2
Slot : 28
Core Length (mm) : 26
USHA PRIME CEILING FAN 48”
- 12 12 ceiling fan coil data
Running Coil : 12
SWG : 36
Coil Turns : 400
Starting Coil : 12
SWG : 36
Coil Turns : 375
Pitch : 1:2
Slot : 24
Core Length (mm) : 23
USHA CEILING FAN 56”
Running Coil : 18
SWG : 35
Coil Turns : 380
Starting Coil : 18
SWG : 34
Coil Turns : 260
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
USHA NEW CEILING FAN 48”
- Ceiling fan 14 slot winding data
Running Coil : 14
SWG : 35
Coil Turns : 360
Starting Coil : 14
SWG : 35
Coil Turns : 255
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
USHA CEILING FAN 48”
Running Coil : 14
SWG : 35
Coil Turns : 365
Starting Coil : 14
SWG : 35
Coil Turns : 360
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
USHA OLD CEILING FAN 56”
Running Coil : 18
SWG : 36
Coil Turns : 370
Starting Coil : 18
SWG : 35
Coil Turns : 340
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
USHA OLD CEILING FAN 56”
Running Coil : 18
SWG : 34
Coil Turns : 380
Starting Coil : 18
SWG : 35
Coil Turns : 370
Pitch : 1:2
Slot : 36
Core Length (mm) : 13mm
ORIENT OLD CEILING FAN 42”
Running Coil : 6
SWG : 34
Coil Turns : 600
Starting Coil : 6
SWG : 35
Coil Turns : 575
Pitch : 1:2
Slot : 12
Core Length (mm) : 16
ORIENT OLD CEILING FAN 48”
Running Coil : 7
SWG : 35
Coil Turns : 560
Starting Coil : 7
SWG : 36
Coil Turns : 530
Pitch : 1:2
Slot : 14
Core Length (mm) : 13
ORIENT OLD CEILING FAN 48”
Running Coil : 9
SWG : 34
Coil Turns : 550
Starting Coil : 9
SWG : 36
Coil Turns : 500
Pitch : 1:2
Slot : 18
Core Length (mm) : 21
ORIENT CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 370
Starting Coil : 18
SWG : 35
Coil Turns : 350
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
ORIENT CEILING FAN 48”
Running Coil : 20
SWG : 35
Coil Turns : 345
Starting Coil : 20
SWG : 35
Coil Turns : 270
Pitch : 1:2
Slot : 40
Core Length (mm) : 16
ORIENT CEILING FAN 48”
Running Coil : 16
SWG : 35
Coil Turns : 365
Starting Coil : 16
SWG : 35
Coil Turns : 320
Pitch : 1:2
Slot : 32
Core Length (mm) : 27
ORIENT CEILING FAN 48”
- Ceiling fan coil winding data 14+14=28
Running Coil : 14
SWG : 35
Coil Turns : 375
Starting Coil : 14
SWG : 35
Coil Turns : 340
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
ORIENT CEILING FAN 48”
Running Coil : 12
SWG : 36
Coil Turns : 390
Starting Coil : 12
SWG : 36
Coil Turns : 345
Pitch : 1:2
Slot : 24
Core Length (mm) : 23
CROMPTON CEILING FAN 42”
Running Coil : 7
SWG : 35
Coil Turns : 400
Starting Coil : 7
SWG : 35
Coil Turns : 600
Pitch : 1:2
Slot : 14
Core Length (mm) : 24
CROMPTON CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 365
Starting Coil : 9
SWG : 35
Coil Turns : 615
Pitch : 1:2
Slot : 27
Core Length (mm) : 14
CROMPTON CEILING FAN 56”
Running Coil : 18
SWG : 35
Coil Turns : 370
Starting Coil : 18
SWG : 35
Coil Turns : 305
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
CROMPTON CEILING FAN 56”
Running Coil : 22
SWG : 33
Coil Turns : 365
Starting Coil : 11
SWG : 35
Coil Turns : 480
Pitch : 1:2
Slot : 33
Core Length (mm) : 22
CROMPTON CEILING FAN 56”
Running Coil : 20
SWG : 34
Coil Turns : 325
Starting Coil : 10
SWG : 35
Coil Turns : 570
Pitch : 1:2
Slot : 30
Core Length (mm) : 18
G E C CEILING FAN 48”
Running Coil : 8
SWG : 35
Coil Turns : 750
Starting Coil : 8
SWG : 34
Coil Turns : 650
Pitch : 1:2
Slot : 16
Core Length (mm) : 21
G E C OLD CEILING FAN 48”
Running Coil : 8
SWG : 35
Coil Turns : 650
Starting Coil : 8
SWG : 35
Coil Turns : 660
Pitch : 1:2
Slot : 16
Core Length (mm) : 21
G E C OLD CEILING FAN 48”
Running Coil : 7
SWG : 35
Coil Turns : 800
Starting Coil : 7
SWG : 35
Coil Turns : 670
Pitch : 1:2
Slot : 14
Core Length (mm) : 13
G E C OLD CEILING FAN 48”
Running Coil : 7
SWG : 36
Coil Turns : 400
Starting Coil : 7
SWG : 35
Coil Turns : 370
Pitch : 1:2
Slot : 14
Core Length (mm) : 13
G E C OLD CEILING FAN 48”
Running Coil : 9
SWG : 33
Coil Turns : 584
Starting Coil : 9
SWG : 33
Coil Turns : 542
Pitch : 1:2
Slot : 18
Core Length (mm) : 21
G E C OLD CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 380
Starting Coil : 9
SWG : 35
Coil Turns : 600
Pitch : 1:2
Slot : 36
Core Length (mm) : 14
G E C OLD CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 330
Starting Coil : 18
SWG : 35
Coil Turns : 330
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
KHETAN CEILING FAN 48”
Running Coil : 18
SWG : 37
Coil Turns : 310
Starting Coil : 18
SWG : 35
Coil Turns : 330
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
BAJAJ CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 325
Starting Coil : 9
SWG : 35
Coil Turns : 600
Pitch : 1:2
Slot : 29
Core Length (mm) : 14
BAJAJ CEILING FAN 48”
Running Coil : 14
SWG : 36
Coil Turns : 410
Starting Coil : 14
SWG : 36
Coil Turns : 360
Pitch : 1:2
Slot : 36
Core Length (mm) : 16
RALLI CEILING FAN 56”
Running Coil : 20
SWG : 35
Coil Turns : 360
Starting Coil : 20
SWG : 34
Coil Turns : 285
Pitch : 1:2
Slot : 40
Core Length (mm) : 16
REALLY OLD CEILING FAN 48”
Running Coil : 16
SWG : 35
Coil Turns : 350
Starting Coil : 16
SWG : 35
Coil Turns : 310
Pitch : 1:2
Slot : 32
Core Length (mm) : 27
REALLY CEILING FAN 56”
Running Coil : 20
SWG : 36
Coil Turns : 385
Starting Coil : 10
SWG : 36
Coil Turns : 700
Pitch : 1:2
Slot : 30
Core Length (mm) : 18
REALLY CEILING FAN 42”
Running Coil : 14
SWG : 36
Coil Turns : 420
Starting Coil : 7
SWG : 36
Coil Turns : 750
Pitch : 1:2
Slot : 21
Core Length (mm) : 24
POLAR CEILING FAN 48”
Running Coil : 16
SWG : 35
Coil Turns : 360
Starting Coil : 16
SWG : 35
Coil Turns : 350
Pitch : 1:2
Slot : 32
Core Length (mm) : 27
POLAR CEILING FAN 56”
Running Coil : 20
SWG : 34
Coil Turns : 330
Starting Coil : 10
SWG : 35
Coil Turns : 600
Pitch : 1:2
Slot : 30
Core Length (mm) : 18
AARTAM CEILING FAN 48”
Running Coil : 14
SWG : 36
Coil Turns : 420
Starting Coil : 14
SWG : 36
Coil Turns : 380
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
AARTAM CEILING FAN 42”
Running Coil : 16
SWG : 36
Coil Turns : 380
Starting Coil : 14
SWG : 36
Coil Turns : 380
Pitch : 1:2
Slot : 30
Core Length (mm) : 16
CINNI CEILING FAN 56”
Running Coil : 20
SWG : 35
Coil Turns : 350
Starting Coil : 20
SWG : 35
Coil Turns : 270
Pitch : 1:2
Slot : 40
Core Length (mm) : 16
CINNI CEILING FAN 56”
Running Coil : 18
SWG : 34
Coil Turns : 330
Starting Coil : 18
SWG : 35
Coil Turns : 380
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
CINNI CEILING FAN 48”
Running Coil : 16
SWG : 35
Coil Turns : 360
Starting Coil : 16
SWG : 36
Coil Turns : 370
Pitch : 1:2
Slot : 32
Core Length (mm) : 27
CINNI CEILING FAN 48”
Running Coil : 18
SWG : 35
Coil Turns : 375
Starting Coil : 9
SWG : 35
Coil Turns : 590
Pitch : 1:2
Slot : 27
Core Length (mm) : 14
CINNI CEILING FAN 56”
Running Coil : 18
SWG : 35
Coil Turns : 330
Starting Coil : 18
SWG : 36
Coil Turns : 345
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
PADMINI CEILING FAN 48”
Running Coil : 14
SWG : 35
Coil Turns : 400
Starting Coil : 14
SWG : 35
Coil Turns : 380
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
PADMINI CEILING FAN 56”
Running Coil : 18
SWG : 35
Coil Turns : 370
Starting Coil : 18
SWG : 35
Coil Turns : 350
Pitch : 1:2
Slot : 36
Core Length (mm) : 13
KRAUN CEILING FAN 48”
Running Coil : 8
SWG : 34
Coil Turns : 640
Starting Coil : 8
SWG : 34
Coil Turns : 630
Pitch : 1:2
Slot : 16
Core Length (mm) : 21
KRAUN CEILING FAN 48”
Running Coil : 7
SWG : 36
Coil Turns : 650
Starting Coil : 7
SWG : 35
Coil Turns : 630
Pitch : 1:2
Slot : 14
Core Length (mm) : 13
ASHOK CEILING FAN 48”
Running Coil : 8
SWG : 34
Coil Turns : 665
Starting Coil : 8
SWG : 35
Coil Turns : 650
Pitch : 1:2
Slot : 16
Core Length (mm) : 21
ASHOK CEILING FAN 48”
Running Coil : 8
SWG : 35
Coil Turns : 650
Starting Coil : 8
SWG : 35
Coil Turns : 600
Pitch : 1:2
Slot : 16
Core Length (mm) : 21
SHITAL CEILING FAN 48”
Running Coil : 7
SWG : 35
Coil Turns : 700
Starting Coil : 7
SWG : 35
Coil Turns : 680
Pitch : 1:2
Slot : 14
Core Length (mm) : 13
SHITAL CEILING FAN 48”
Running Coil : 14
SWG : 36
Coil Turns : 400
Starting Coil : 14
SWG : 36
Coil Turns : 385
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
SHITAL CEILING FAN 42”
Running Coil : 14
SWG : 35
Coil Turns : 430
Starting Coil : 7
SWG : 35
Coil Turns : 700
Pitch : 1:2
Slot : 21
Core Length (mm) : 24
ARCON CEILING FAN 48”
Running Coil : 18
SWG : 31
Coil Turns : 495
Starting Coil : 18
SWG : 30
Coil Turns : 550
Pitch : 1:2
Slot : 31
Core Length (mm) : 13
NEW SHINGAR CEILING FAN 48”
Running Coil : 14
SWG : 35
Coil Turns : 660
Starting Coil : 14
SWG : 36
Coil Turns : 660
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
SHINGAR CEILING FAN 48”
Running Coil : 14
SWG : 35
Coil Turns : 370
Starting Coil : 14
SWG : 35
Coil Turns : 330
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
LOCAL CEILING FAN 48”
Running Coil : 14
SWG : 35
Coil Turns : 375
Starting Coil : 14
SWG : 35
Coil Turns : 335
Pitch : 1:2
Slot : 28
Core Length (mm) : 16
PDF Download
You can download this full data in PDF format.
How to Do Ceiling Fan Motor Coil Winding
Required Tools
- Swg chart
- Copper wire
- Slot paper insulation
- Digital multimeter
- Soldering iron
- Varnish for insulation
Step-by-Step Process
Step 1: Old Wire Coil Removal
Remove the burnt wire winding and clean the slot.
Step 2: Applying slot paper
Carefully place the insulation paper in the slot.
Step 3: Wire SWG and Turns Selection
The correct selection of SWG and turns will be done according to the power of the fan. E.g., SWG 35-36 is commonly used.
Step 4: Coil Winding Karna
Pitch follow cards Make winding (1:2 or 1:3 layout).
Step 5: Termination and Testing
Solder the wire ends properly, then check continuity and resistance with a multimeter.
- Ceiling fan coil winding data
- Ceiling fan motor coil winding
- Ceiling fan winding PDF
- SWG for fan winding
- Coil winding turns chart
People Also Ask
What is the ideal SWG for ceiling fan winding?
- Generally, SWG 34 to 36 is used depending on motor wattage and core length.
How many turns in a ceiling fan coil?
- Running coil typically has 400–800 turns, while starting coil ranges between 250–650 turns.
Where to download ceiling fan winding data PDF?
- PDF is available above in the ‘Ceiling Fan Coil Winding Data’ section or [download link here].
Can I do fan coil winding at home?
- Yes, with proper data, tools, and safety precautions, you can wind ceiling fan motors yourself.
Ceiling fan winding daigram here
- Yes, ceiling fan daigram is available here
Conclusion
If you are an electrician or fan repairman or a student, accurate coil winding data is a goldmine for you. The practical examples, SWG chart and step-by-step guide given in this article will help you to do the correct winding for every fan model.
