12 Table Fan Coil Winding Data –Full Guide with PDF Download

Detailed guide of table fan coil winding data. Aluminum and copper wire winding specifications, coil size, turns, coil pitch, and capacitor values of Bajaj, Usha, Crompton, Orient, American and other popular brands included

Introduction:

Understanding table fan winding data is very important for every technician, repairer and manufacturer. In this article, we will give you motor coil winding specifications of 12 popular table fan brands, including coil turns, wire gauge (SWG), coil pitch, core size and capacitor values. This data will help you to improve the accuracy and performance of motor winding.

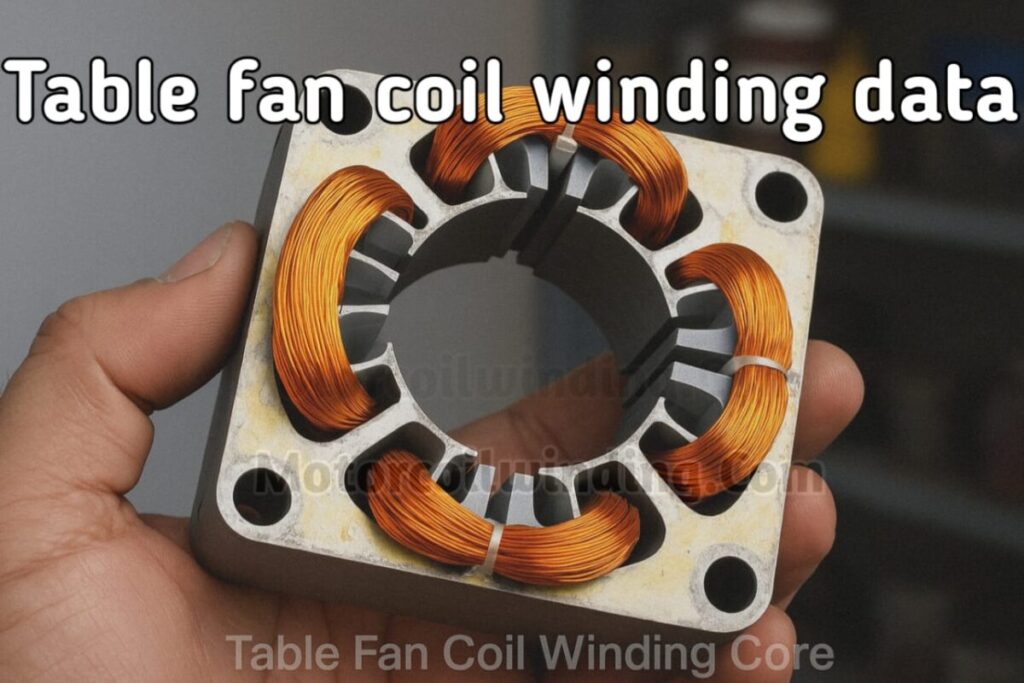

What is Table Fan Coil Winding?

Coil winding is an important part of the table fan motor. Inside the motor, copper or aluminium wire is wrapped in coils, which is called winding. This winding creates the necessary magnetic field to run the motor.

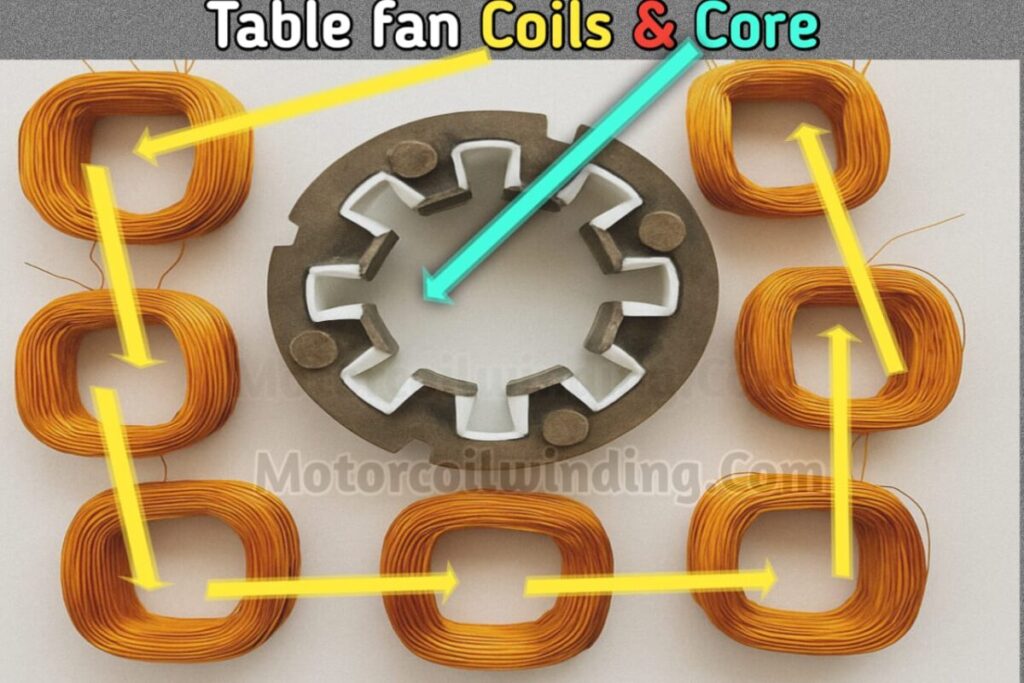

Coil Winding Ke Important Components:

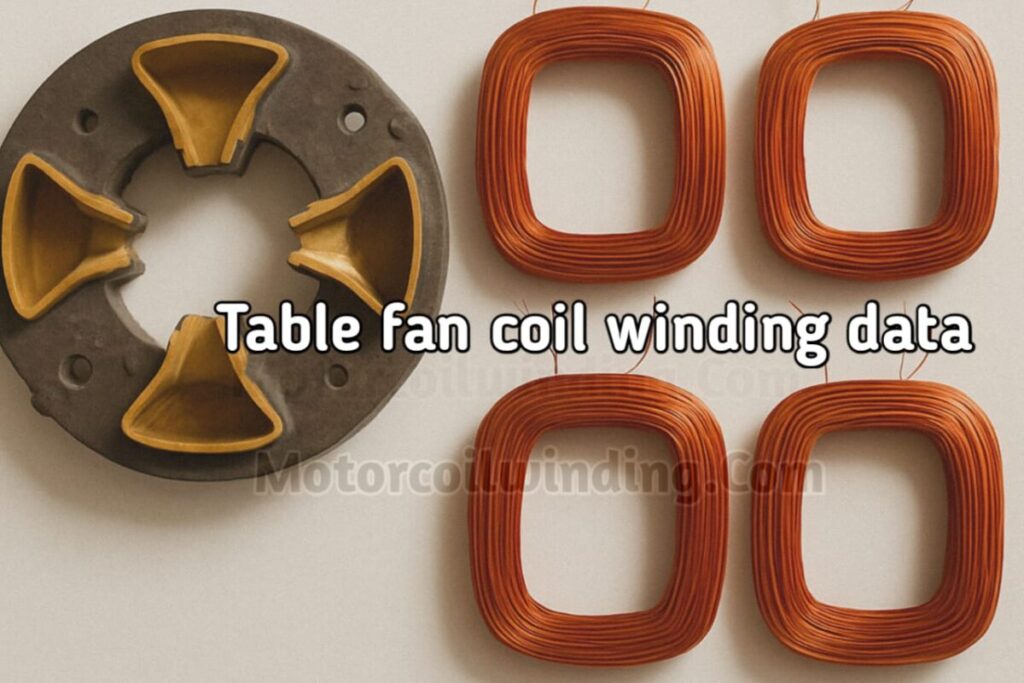

1. Slots:
   There are spaces in the core of the motor to fit the wire coils, which are called slots. Like 4 slots, 8 slots, etc.
2. Core Size:
   The core size of the motor indicates the space for wire winding. Like 25mm, 33mm, 38mm, etc.
3. SWG (Standard Wire Gauge):
   It shows the thickness of the wire. A smaller number means the wire is thicker, and thicker wires can carry more current
4. Coil Turns:
   The number of rounds or loops of the wire. More turns make the magnetic field stronger.
5. Coil Pitch:
   Distance between the turns of the coil. This affects the efficiency and heat dissipation of the motor.
6. Running Winding & Starting Winding:
   There are two types of windings in a motor – the running winding runs the motor, the starting winding helps in starting the motor.

How does table fan coil winding work?

When current flows in the motor, a magnetic field is formed inside the winding. This magnetic field rotates the rotor, which makes the fan run. The running winding runs the motor continuously, and the starting winding helps in starting the motor.

1. Bajaj Table Fan Coil Winding Data (Heavy Duty)

According to motorcoilwindingdata.com, Bajaj’s heavy duty table fan comes with 8 slots and 33mm core size. The coil pitch is 1:3 which optimizes the efficiency of the motor.

• Running Coil:
  • Total Coil: 4
  • SWG: 37
  • Coil Turns: 1150
• Starting Coil:
  • Total Coil: 4
  • SWG: 37
  • Coil Turns: 1100

This winding design provides more torque and durability to the motor.

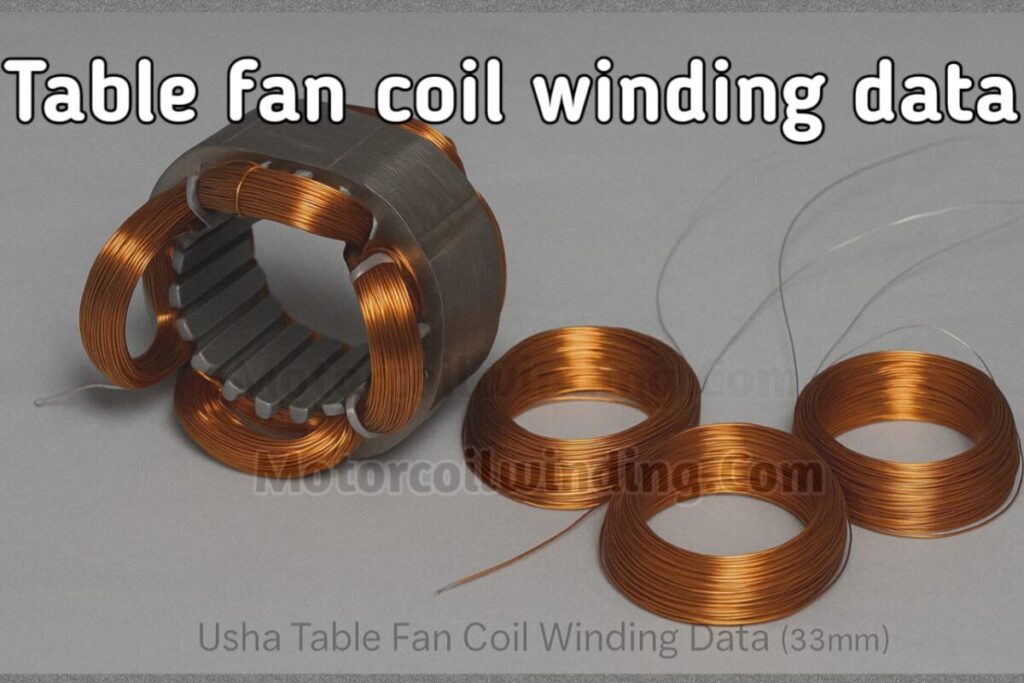

2. Usha Table Fan Coil Winding Data

Usha table fan has 8 slots and 33mm core size. Coil pitch is 1:4 which is best for smooth running.

• Running Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 850
• Starting Coil:
  • Total Coil: 4
  • SWG: 34
  • Coil Turns: 800

This winding provides balance in both starting and running phases of the motor.

3. Bajaj Table Fan Coil Winding Data (Standard)

Another model of Bajaj comes with 8 slots and 33mm core size, whose RPM is 1440.

• Running Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 650
• Starting Coil:
  • Total Coil: 4
  • SWG: 35
  • Coil Turns: 725

This maintains both the speed and efficiency of the winding motor.

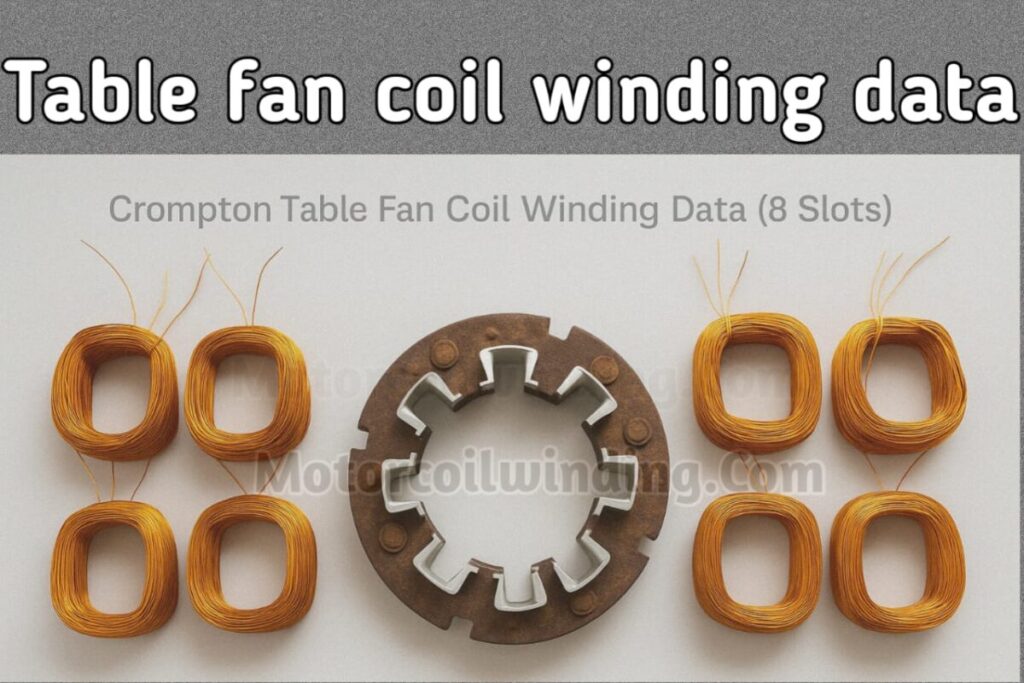

4. Crompton Table Fan Coil Winding Data

Crompton fan has 8 slots and 27mm core size, coil pitch is 1:4.

• Running Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 730
• Starting Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 700

With this design the heat dissipation of the motor is good.

5. Nimmi Table Fan Coil Winding Data

Nimmi fan has 8 slots and 33mm core size, coil pitch 1:3.

• Running Coil:
  • Total Coil: 4
  • SWG: 35
  • Coil Turns: 800
• Starting Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 800

This winding gives balanced torque and smooth running to the motor.

6. Inova Table Fan Coil Winding Data

Inova fan has 8 slots and 27mm core size, coil pitch 1:4.

• Running Coil:
  • Total Coil: 4
  • SWG: 35
  • Coil Turns: 600
• Starting Coil:
  • Total Coil: 4
  • SWG: 35
  • Coil Turns: 600

This winding improves both the efficiency and durability of the motor.

7. Orient Table Fan Coil Winding Data (33mm Core)

Orient fan has 4 slots and 33mm core size, coil pitch 1:2.

• Running Coil:
  • Total Coil: 4
  • SWG: 31
  • Coil Turns: 520
• Starting Coil:
  • Total Coil: 4
  • SWG: 31
  • Coil Turns: 520

This winding design makes the motor compact and efficient.

8. Cinni Table Fan Coil Winding Data

Cinni fan has 4 slots and 25mm core size, coil pitch 1:2.

• Running Coil:
  • Total Coil: 4
  • SWG: 28
  • Coil Turns: 450
• Starting Coil:
  • Total Coil: 4
  • SWG: 28
  • Coil Turns: 450

This winding makes the motor light weight and smooth running.

9. Orient Table Fan Coil Winding Data (25mm Core)

Another model of Orient fan comes with 4 slots and 25mm core size.

• Running Coil:
  • Total Coil: 4
  • SWG: 32
  • Coil Turns: 640
• Starting Coil:
  • Total Coil: 4
  • SWG: 32
  • Coil Turns: 640

This balances both the power and speed of the winding motor.

10. American Table Fan Coil Winding Data

American fan has 4 slots and 38mm core size, coil pitch 1:2.

• Running Coil:
  • Total Coil: 4
  • SWG: 30
  • Coil Turns: 480
• Starting Coil:
  • Total Coil: 4
  • SWG: 30
  • Coil Turns: 480

This winding improves the stability and performance of the motor.

11. Bajaj Wall Fan Motor coil Winding Data

Bajaj wall fan has 8 slots and 27mm core size, coil pitch 1:4.

• Running Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 775
• Starting Coil:
  • Total Coil: 4
  • SWG: 36
  • Coil Turns: 685

This winding provides more torque and long life to the motor.

12. Orient Fan Motor Coil Winding Data

Orient fan has 4 slots and 33mm core size, RPM 1440.

• Running Coil:
  • Total Coil: 4
  • SWG: 31
  • Coil Turns: 520
• Starting Coil:
  • Total Coil: 4
  • SWG: 31
  • Coil Turns: 520

With this winding both the speed and efficiency of the motor are maintained.

• Single Phase vs Three Phase _6 Amazing Motor Winding Facts
• ALL TABLE FAN WINDING DATA
• What is Motor Coil Winding? Step-by-Step Guide & Process
• Wire Gauge Converter SWG to MM Best & No1 Conversion Tools

Download PDF

For your convenience, you can download the complete table fan motor coil winding data PDF by clicking on the button below:

PAA (People Also Ask)

Q1: What is table fan coil winding?

A1: Table fan coil winding is an arrangement of wire coils inside the motor which creates a magnetic field to run the motor.

Q2: What is the role of coil turns in table fan winding data?

A2: Coil turns are rounds of wire, which creates a magnetic field. More turns increase the efficiency of the motor.

Q3: What is the difference between running winding and starting winding?

A3: Running winding drives the motor continuously, while starting winding helps start the motor.

Q4: How is table fan winding data used?
A4: Winding data is used in motor repair, manufacturing, and winding to ensure the best performance and durability of the motor.

Conclusion:

This detailed table fan winding data provided by motorcoilwindingdata.com will help you improve the accuracy and performance of motor winding. To get the best life and performance from your fan motor, always follow the winding specifications of each brand carefully.
